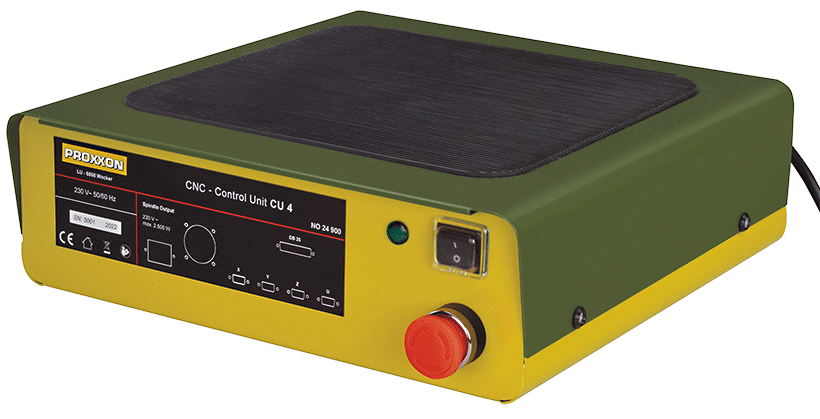

PROXXON CNC-Control Unit CU 4 - For operating CNC lathes and milling machines with up to four axes. Ready for use, powerful and safe.

Free choice of CNC-software: e.g. MACH3/4, Estlcam may be used for operation via parallel-port (if necessary with use of LTP-adaptor). Four powerful micro step drivers (norm-interface SUB-D 9-pole) always provide enough energy for any machining processes. One feedback signal (e. g. limit switch) each for each axis.

Switching relay for 230V-outlet (IEC-socket and protective contact socket) for spindle powering or special functions up to 2,500W.

Solid main housing made of 1.2mm steel plates (powder-coated) with large grooved rubber mat for tool storage.

PRODUCT SPECIFICATION

• Power: 230 Volt / 50-60Hz
• Dimensions: 330 x 300 x 100mm
• Weight: Approx. 4.5kg
• Insulation: Class 1

Machine Compatibility (see RELATED PRODUCTS)

• Art. 24364 - CNC Ready Miller
• Art. 24504 - CNC Ready Precision Lathe
• Art. 27112 - CNC Ready Micro Miller
